Nestjs打通mysql与GraphQL链路、graphql 分页配置

大纲

Nest
- 安装@nestjs/cli
- 创建nest项目
Mysql与typeorm
- 安装mysql
- 定义数据库实体
GraphQL
- 安装graphql
- 定义graphql 数据模型
- graphql query实现
GraphQL 定义分页类型与实现
- resful分页实现
- graphql数据类型定义与分页实现

如看本文，默认你对nestjs有一定的了解了。

实例代码：https://github.com/wujian-xyz/nest-demo

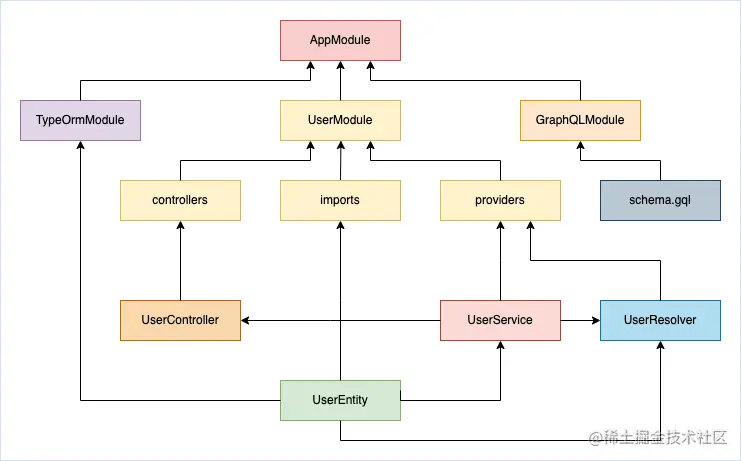

模块依赖关系

一、Nest

1、安装nestjs

pnpm i -g @nestjs/cli

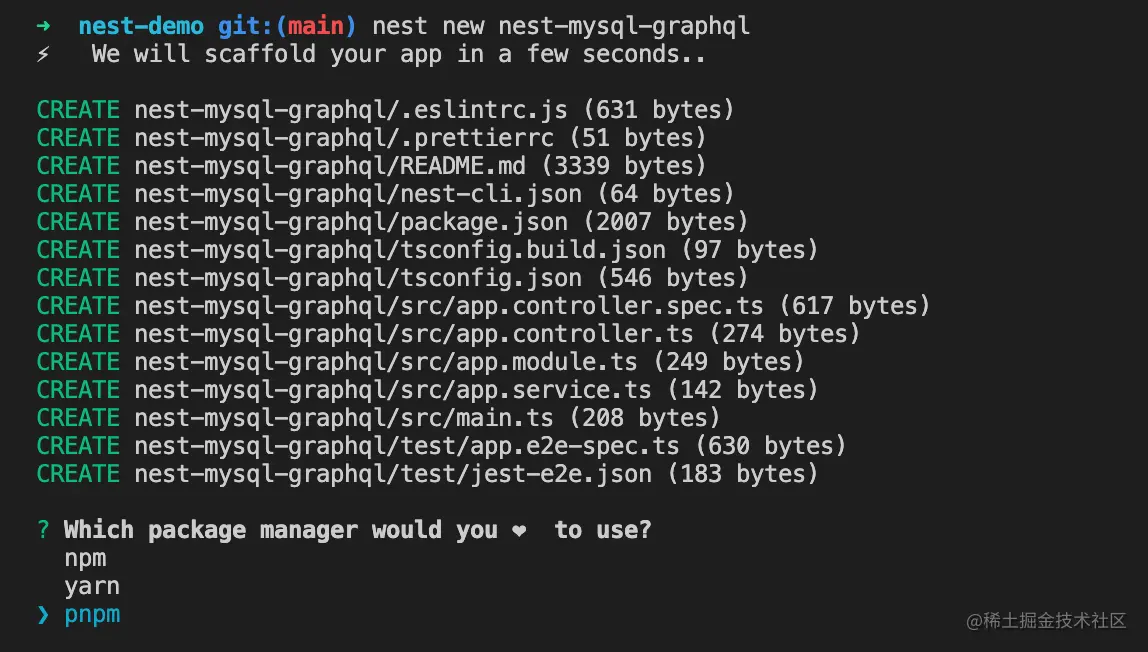

2、创建nest项目

nest new nest-mysql-graphql

3、nest入口加Logger，方便调试,`src/main.ts`

// src/main.ts
import { NestFactory } from '@nestjs/core'
import { AppModule } from './app.module'
import { Logger } from '@nestjs/common'

async function bootstrap() {
  const app = await NestFactory.create(AppModule)
  await app.listen(3000)
  Logger.log('http://127.0.0.1:3000', '项目启动成功')
}
bootstrap()

二、Nest与Mysql

1、安装mysql

pnpm install @nestjs/typeorm typeorm mysql2 --save

链接mysql数据，如没报错，那恭喜你链接成功！

// src/app.module.ts
import { Module } from '@nestjs/common';
import { AppController } from './app.controller';
import { AppService } from './app.service';
// 导出orm模块
import { TypeOrmModule } from '@nestjs/typeorm';

@Module({
  imports: [
    TypeOrmModule.forRoot({
      type: 'mysql',
      host: 'localhost',
      port: 3306,
      username: 'root',
      password: '123456', // 数据库密码，自己定义的
      database: 'nest-mysql-graphql', // 数据库名称，提前建好
      entities: [],
      synchronize: true,
    }),
  ],
  controllers: [AppController],
  providers: [AppService],
})
export class AppModule {}

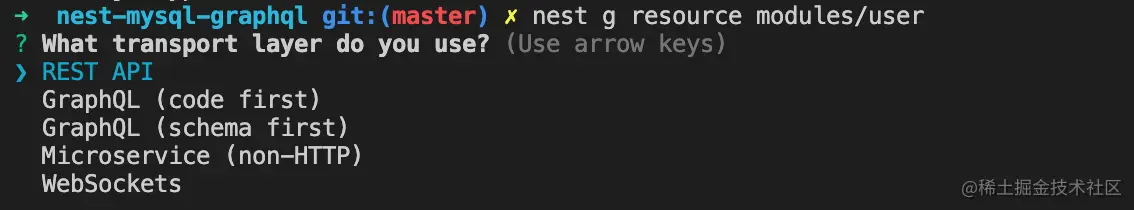

2、使用 `nest g resource` 生成`CRUD`模块代码

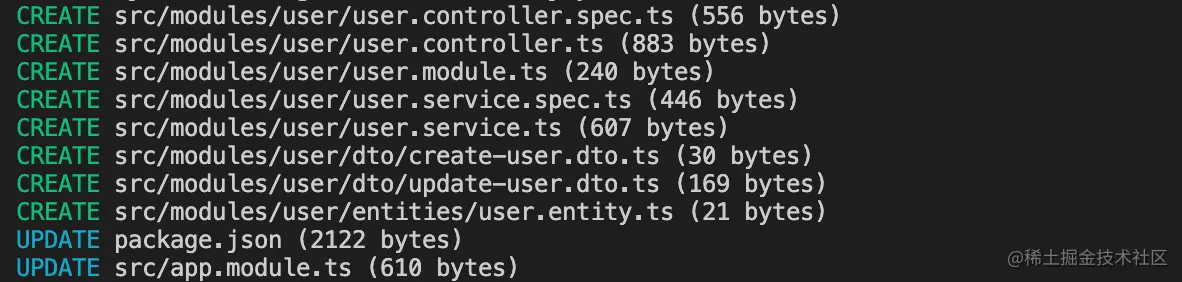

nest g resource modules/user

在src/modules下生成user模块

user模块，依赖@nestjs/mapped-types，继续安装

pnpm install @nestjs/mapped-types --save

3、定义user实体，`src/modules/user/entities/user.entity.ts`

// src/modules/user/entities/user.entity.ts
import { Entity, Column, PrimaryGeneratedColumn, UpdateDateColumn, CreateDateColumn } from 'typeorm'

@Entity('user')
export class UserEntity {
  @PrimaryGeneratedColumn({
    comment: '用户id',
  })
  id: number

  @Column({
    type: 'varchar',
    width: 255,
    nullable: false,
    comment: '用户名',
  })
  username: string

  @Column({
    type: 'varchar',
    width: 255,
    nullable: true,
    comment: '邮件',
  })
  email: string

  @Column({
    type: 'varchar',
    width: 255,
    nullable: true,
    comment: '密码',
  })
  password: string

  @CreateDateColumn({
    name: 'created_at',
    type: 'timestamp',
    nullable: true,
    comment: '添加时间',
  })
  createdAt: Date

  @UpdateDateColumn({
    name: 'updated_at',
    type: 'timestamp',
    nullable: true,
    comment: '更新时间',
  })
  updatedAt: Date
}

4、在配置中加载user实体

// src/app.module.ts
import { Module } from '@nestjs/common'
import { AppController } from './app.controller'
import { AppService } from './app.service'
import { TypeOrmModule } from '@nestjs/typeorm'
// nest g resource modules/user 命令自动注入
import { UserModule } from './modules/user/user.module'
// 导入实体到typeorm配置中，数据库自动创建user表
import { UserEntity } from './modules/user/entities/user.entity'

@Module({
  imports: [
    TypeOrmModule.forRoot({
      type: 'mysql',
      host: 'localhost',
      port: 3306,
      username: 'root',
      password: 'wujian798',
      database: 'nest-mysql-graphql',
      entities: [UserEntity],
      synchronize: true,
    }),
    UserModule,
  ],
  controllers: [AppController],
  providers: [AppService],
})
export class AppModule {}

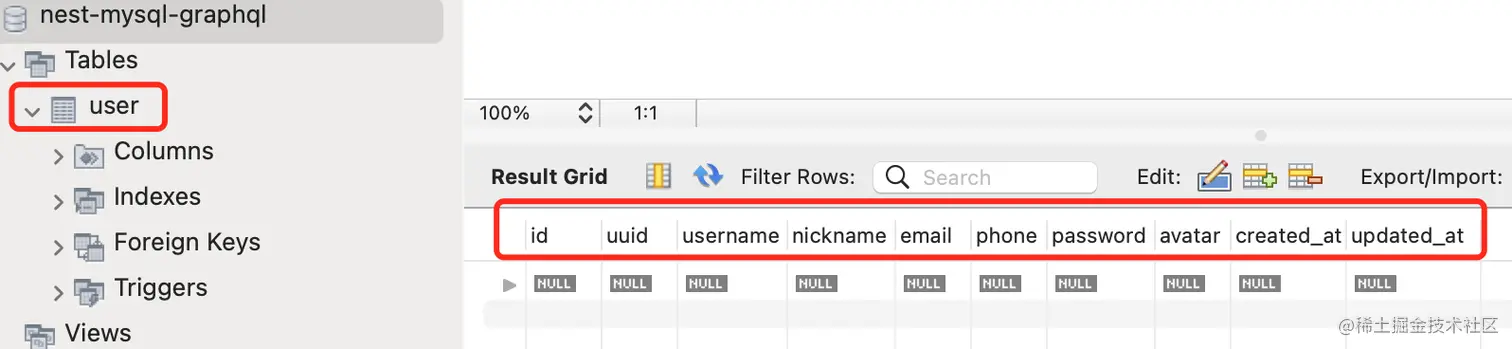

自动创建user表

5、TypeOrmModule.forFeature加载user实体到user模块中

// src/modules/user/user.module.ts
import { Module } from '@nestjs/common'
import { TypeOrmModule } from '@nestjs/typeorm'
import { UserService } from './user.service'
import { UserController } from './user.controller'
import { UserEntity } from './entities/user.entity'

@Module({
  imports: [TypeOrmModule.forFeature([UserEntity])],
  controllers: [UserController],
  providers: [UserService],
})
export class UserModule {}

6、user服务关联实体

// src/modules/user/user.service.ts
import { Injectable } from '@nestjs/common'
import { InjectRepository } from '@nestjs/typeorm'
import { Repository } from 'typeorm'
import { CreateUserDto } from './dto/create-user.dto'
import { UpdateUserDto } from './dto/update-user.dto'
import { UserEntity } from './entities/user.entity'

@Injectable()
export class UserService {
  constructor(
    @InjectRepository(UserEntity)
    private readonly userRepository: Repository<UserEntity>
  ) {}
  create(createUserDto: CreateUserDto) {
    this.userRepository.create(createUserDto)
    return this.userRepository.save(createUserDto)
  }

  findAll() {
    return this.userRepository.find()
  }

  findOne(id: number) {
    return this.userRepository.findOne({
      where: { id },
    })
  }

  update(id: number, updateUserDto: UpdateUserDto) {
    return this.userRepository.update(id, updateUserDto)
  }

  remove(id: number) {
    return this.userRepository.delete(id)
  }
}

postman测试curd，结果如下：

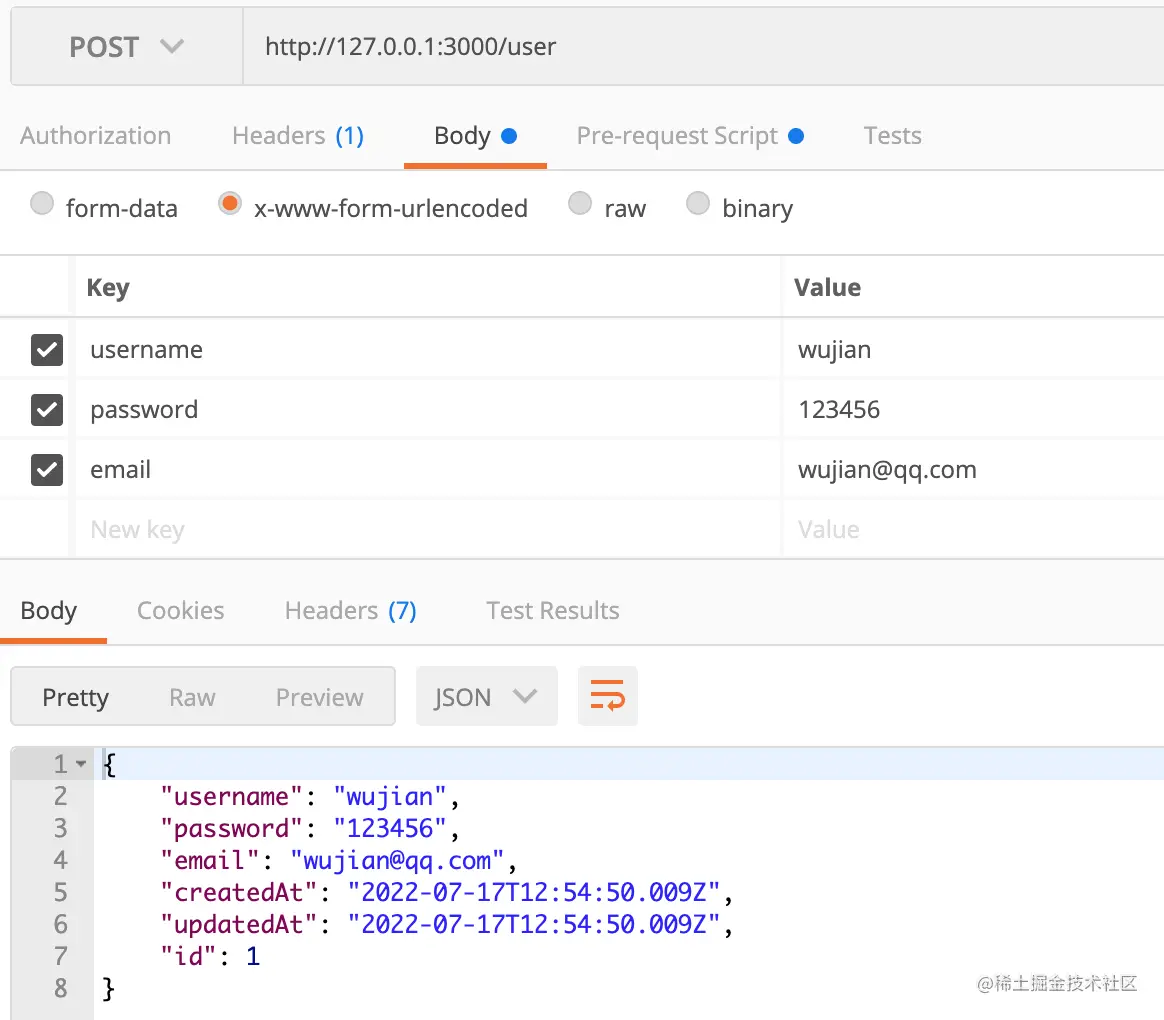

POST 创建
PUT 编辑
GET 列表

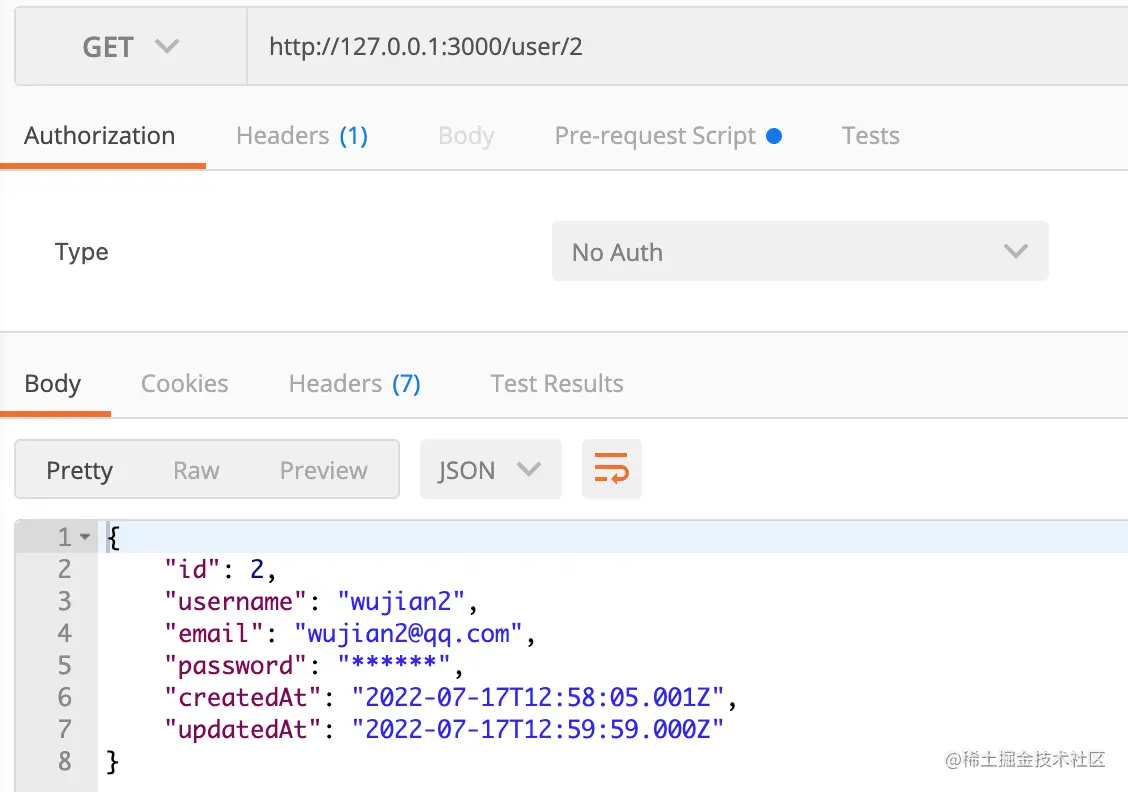

GET 列表项

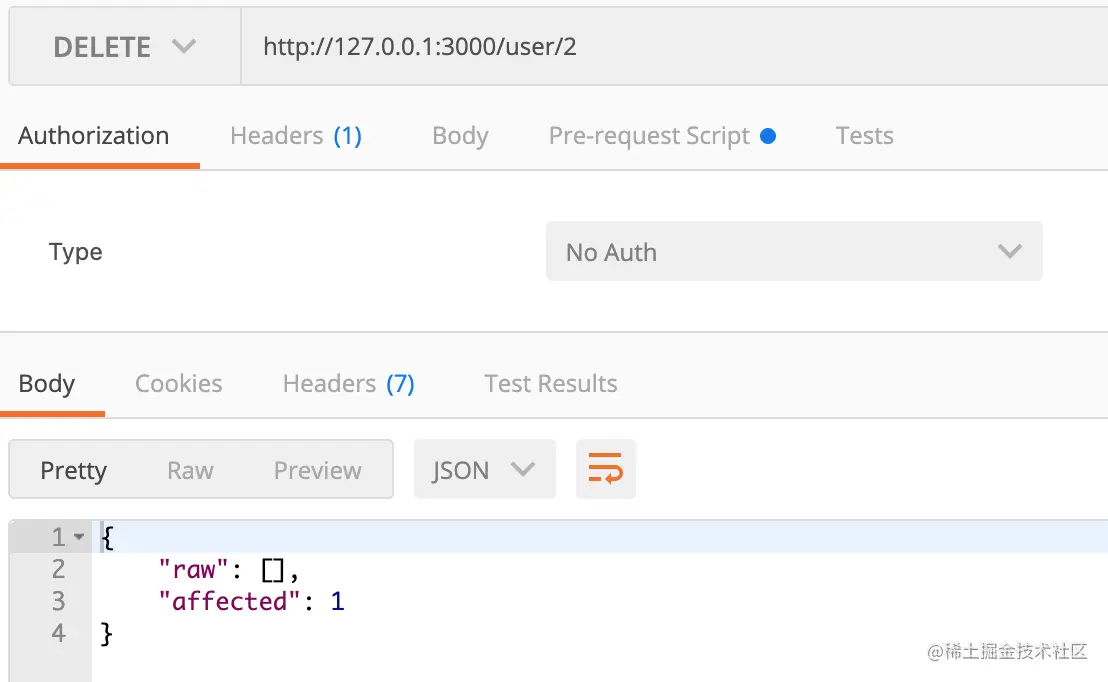

DELETE 删除

所有接口到正常，到这里nest框架mvp已完成，我们继续吧

三、nest与graphql

1、安装graphql

pnpm i @nestjs/graphql @nestjs/apollo graphql apollo-server-express

2、定义graphql 数据模型，可以与共用user实体类

// // src/modules/user/entities/user.entity.ts
import { Entity, Column, PrimaryGeneratedColumn, UpdateDateColumn, CreateDateColumn } from 'typeorm'
import { Field, Int, ObjectType } from '@nestjs/graphql'

@ObjectType()
@Entity('user')
export class UserEntity {
  @Field(() => Int)
  @PrimaryGeneratedColumn({
    comment: '用户id',
  })
  id: number

  @Field()
  @Column({
    type: 'varchar',
    width: 255,
    nullable: false,
    comment: '用户名',
  })
  username: string

  @Field()
  @Column({
    type: 'varchar',
    width: 255,
    nullable: true,
    comment: '邮件',
  })
  email: string

  @Field()
  @Column({
    type: 'varchar',
    width: 255,
    nullable: true,
    comment: '密码',
  })
  password: string

  @Field()
  @CreateDateColumn({
    name: 'created_at',
    type: 'timestamp',
    nullable: true,
    comment: '添加时间',
  })
  createdAt: Date

  @Field()
  @UpdateDateColumn({
    name: 'updated_at',
    type: 'timestamp',
    nullable: true,
    comment: '更新时间',
  })
  updatedAt: Date
}

3、在user文件夹新增graphql resolver

// src/modules/user/user.resolver.ts
import { UserEntity } from './entities/user.entity'
import { UserService } from './user.service'
import { Resolver, Query, Args } from '@nestjs/graphql'

@Resolver(() => UserEntity)
export class UserResolver {
  constructor(private readonly userService: UserService) {}

  @Query(() => [UserEntity], { name: 'users', nullable: true })
  users(): Promise<UserEntity[]> {
    return this.userService.findAll()
  }

  @Query(() => UserEntity, { nullable: true })
  user(@Args('id') id: number): Promise<UserEntity> {
    return this.userService.findOne(id)
  }
}

3、graphql resolver导入 module providers中

import { Module } from '@nestjs/common'
import { TypeOrmModule } from '@nestjs/typeorm'
import { UserService } from './user.service'
import { UserController } from './user.controller'
import { UserEntity } from './entities/user.entity'
import { UserResolver } from './user.resolver'

@Module({
  imports: [TypeOrmModule.forFeature([UserEntity])],
  controllers: [UserController],
  providers: [UserResolver, UserService],
})
export class UserModule {}

4、配置graphql

// src/app.module.ts
import { Module } from '@nestjs/common'
import { AppController } from './app.controller'
import { AppService } from './app.service'
import { TypeOrmModule } from '@nestjs/typeorm'
// nest g resource modules/user 命令自动注入
import { UserModule } from './modules/user/user.module'
// 导入实体到typeorm配置中，数据库自动创建user表
import { UserEntity } from './modules/user/entities/user.entity'
import { GraphQLModule } from '@nestjs/graphql'
import { ApolloDriver, ApolloDriverConfig } from '@nestjs/apollo'

@Module({
  imports: [
    TypeOrmModule.forRoot({
      type: 'mysql',
      host: 'localhost',
      port: 3306,
      username: 'root',
      password: 'wujian798',
      database: 'nest-mysql-graphql',
      entities: [UserEntity],
      synchronize: true,
    }),
    GraphQLModule.forRoot<ApolloDriverConfig>({
      driver: ApolloDriver,
      autoSchemaFile: join(process.cwd(), 'src/schema.gql'),
    }),
    UserModule,
  ],
  controllers: [AppController],
  providers: [AppService],
})
export class AppModule {}

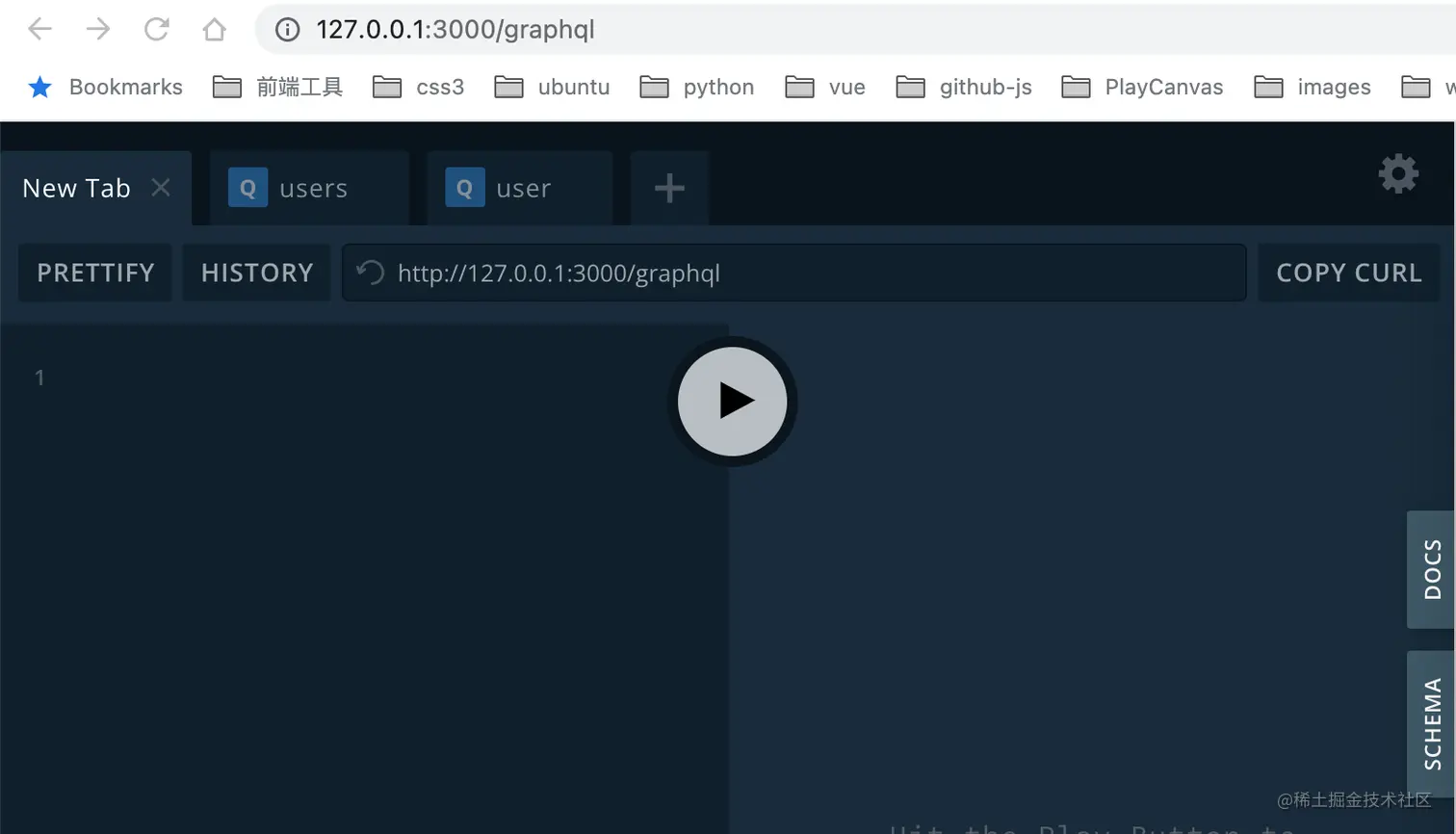

查看：http://127.0.0.1:3000/graphql 可以该可视化工具测试graphql

query {
  user(id: 3) {
    id
    username
    password
    email
  }
}

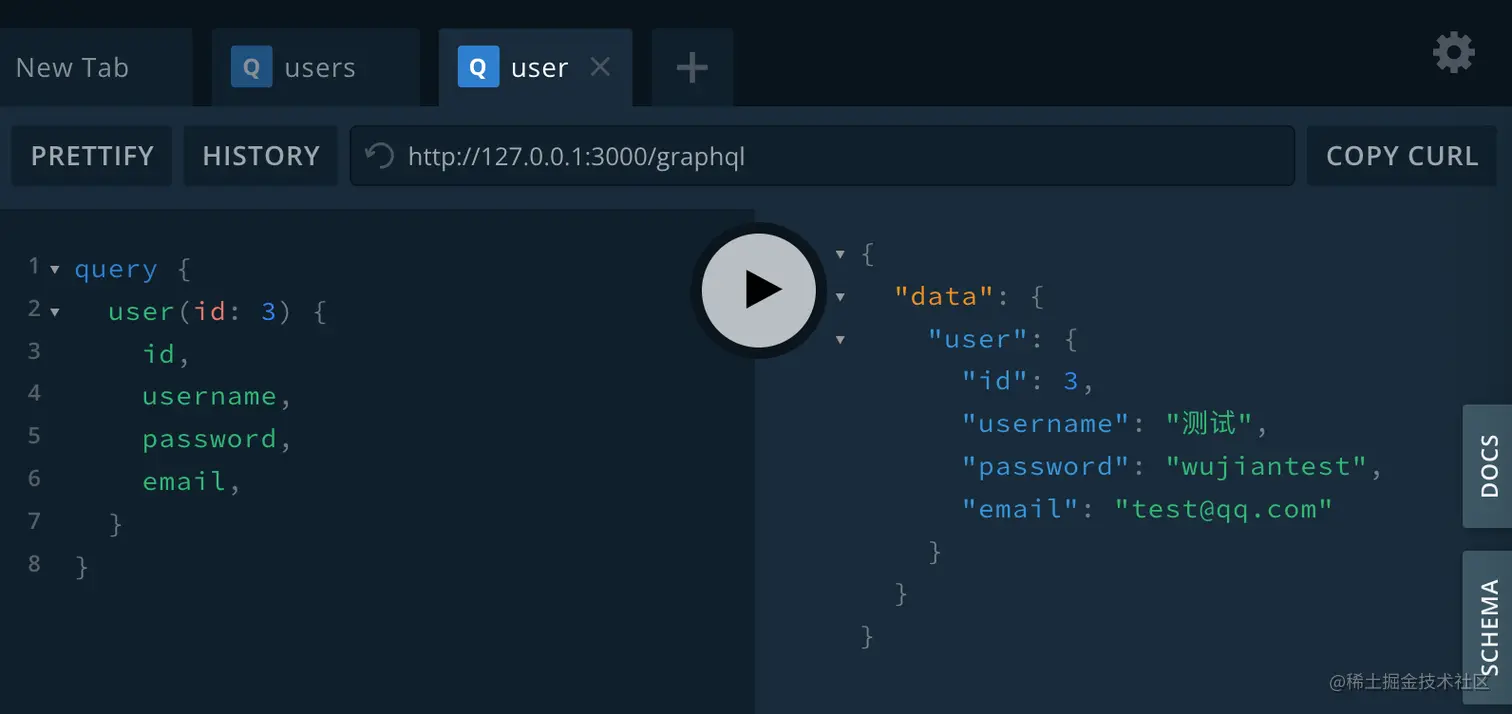

测试一条数据

测试多数据

测试集合数据

写到这，mysql到grapql链路已完成，本想就此结束。再想想自己处理分页是，遇到了很多炕，在掘金、google、github找了很久，没找到满意的demo（解决方案），后来还是回到nest官网上找到解决方法。

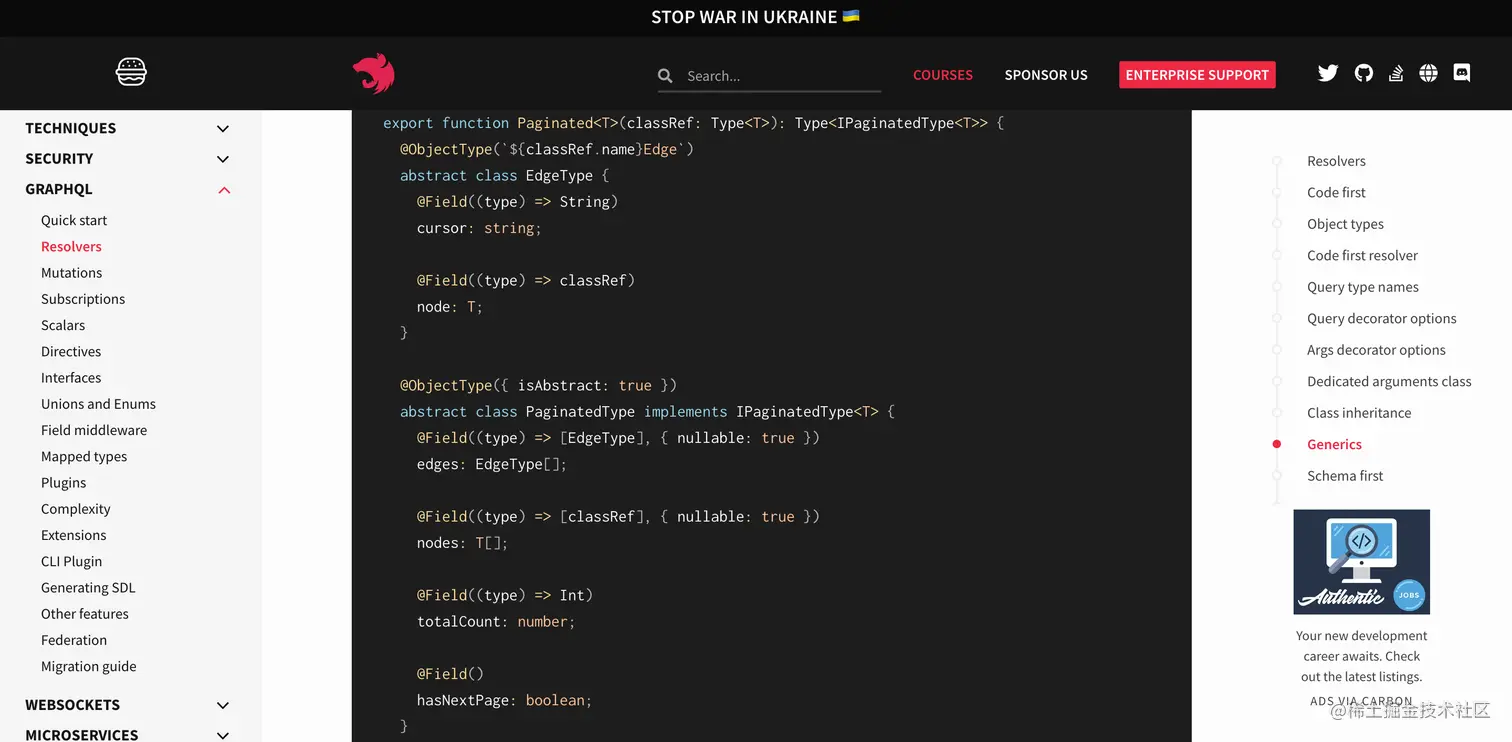

位置链接:https://docs.nestjs.com/graphql/resolvers

四、 GraphQL 定义分页类型与实现

1、RESTful分页实现，

在 user.service.ts 添加分页服务方法 findAndCount

// src/modules/user/user.service.ts
import { Injectable } from '@nestjs/common'
import { InjectRepository } from '@nestjs/typeorm'
import { Repository } from 'typeorm'
import { CreateUserDto } from './dto/create-user.dto'
import { UpdateUserDto } from './dto/update-user.dto'
import { UserEntity } from './entities/user.entity'
import { BaseService, IPaginationOptions } from '../../globals/base.service'

@Injectable()
export class UserService extends BaseService {
  constructor(
    @InjectRepository(UserEntity)
    private readonly userRepository: Repository<UserEntity>
  ) {
    super(userRepository)
  }
  // 添加分页服务方法
  findAndCount(options?: IPaginationOptions) {
    return this.findListAndPage(options)
  }
}

分页方法提取到base.service.ts中，方便复用。

// src/globals/base.service.ts
import { Repository, FindOptionsRelations } from 'typeorm'

export interface IPagination {
  page?: number
  size?: number
}

// 分页返回体数据结构
export interface IPaginationResponse<T = any> {
  list: Array<T>
  pagination: IPagination
  total: number
}

export interface IPaginationOptions {
  pagination?: IPagination
  order?: object
  where?: object
  relations?: FindOptionsRelations<any>
  select?: object
}

export class BaseService {
  constructor(private readonly currentRepository: Repository<any>) {}
  async findListAndPage(options: IPaginationOptions): Promise<IPaginationResponse> {
    const DEFOULT_PAGE = 1
    const DEFOULT_SIZE = 20
    const {
      pagination = { page: DEFOULT_PAGE, size: DEFOULT_SIZE },
      order = {},
      where = {},
      relations = {},
      select = {},
    } = options || {}
    const { page = DEFOULT_PAGE, size = DEFOULT_SIZE } = pagination
    const [list, total]: [Array<any>, number] = await this.currentRepository.findAndCount({
      take: size,
      skip: (page - 1) * size,
      order,
      where,
      relations,
      select,
    })
    return {
      list,
      pagination: {
        page,
        size,
      },
      total,
    }
  }
}

在user.controller.ts中添加分页方法 findAndCount

// src/modules/user/user.controller.ts
import { Controller, Get, Post, Body, Put, Param, Delete, Query } from '@nestjs/common'
import { UserService } from './user.service'
import { CreateUserDto } from './dto/create-user.dto'
import { UpdateUserDto } from './dto/update-user.dto'
import { getNumber } from '../../utils'

@Controller('user')
export class UserController {
  constructor(private readonly userService: UserService) {}
  @Get('page')
  findAndCount(@Query() query: { page?: number; size?: number } = {}) {
    const { page, size } = query
    return this.userService.findAndCount({
      pagination: { page: getNumber(page), size: getNumber(size) },
    })
  }
}

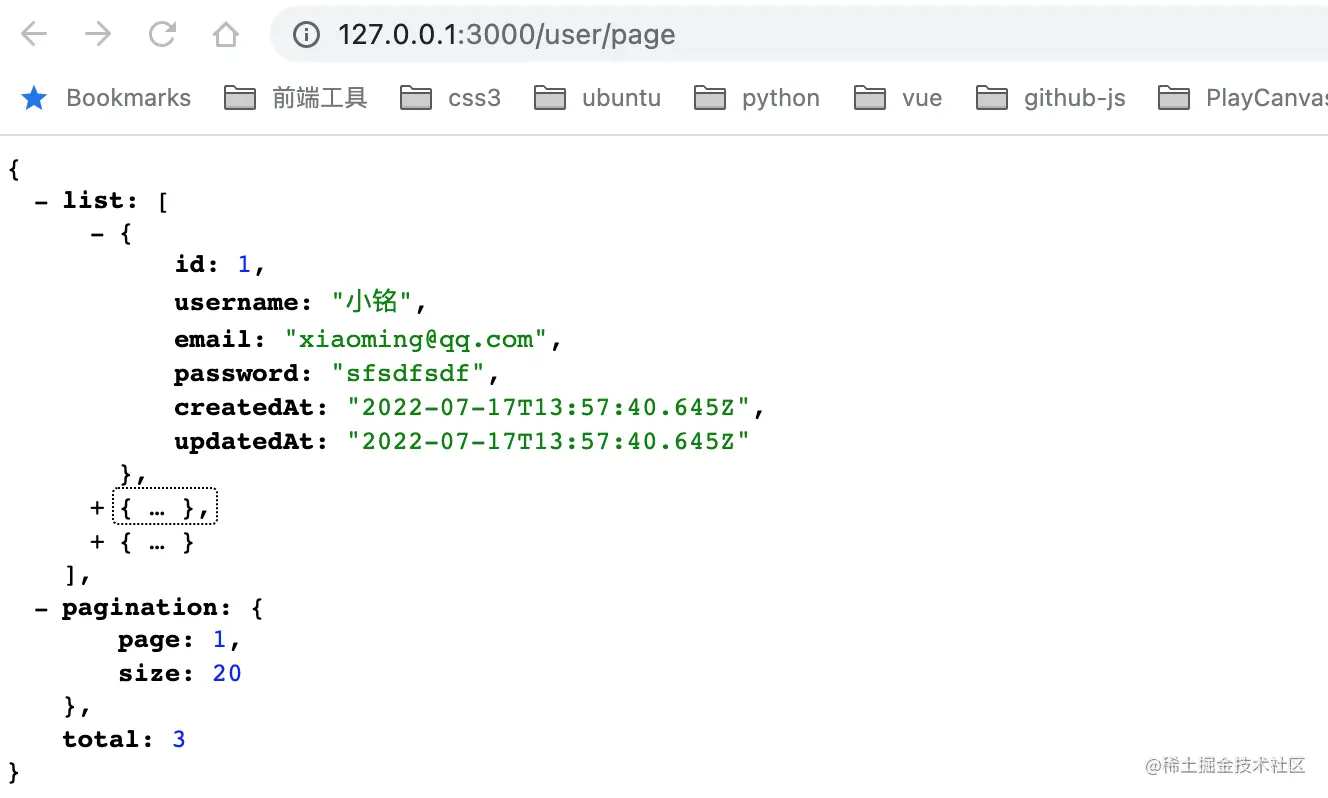

resful接口测试分页功能，如下图

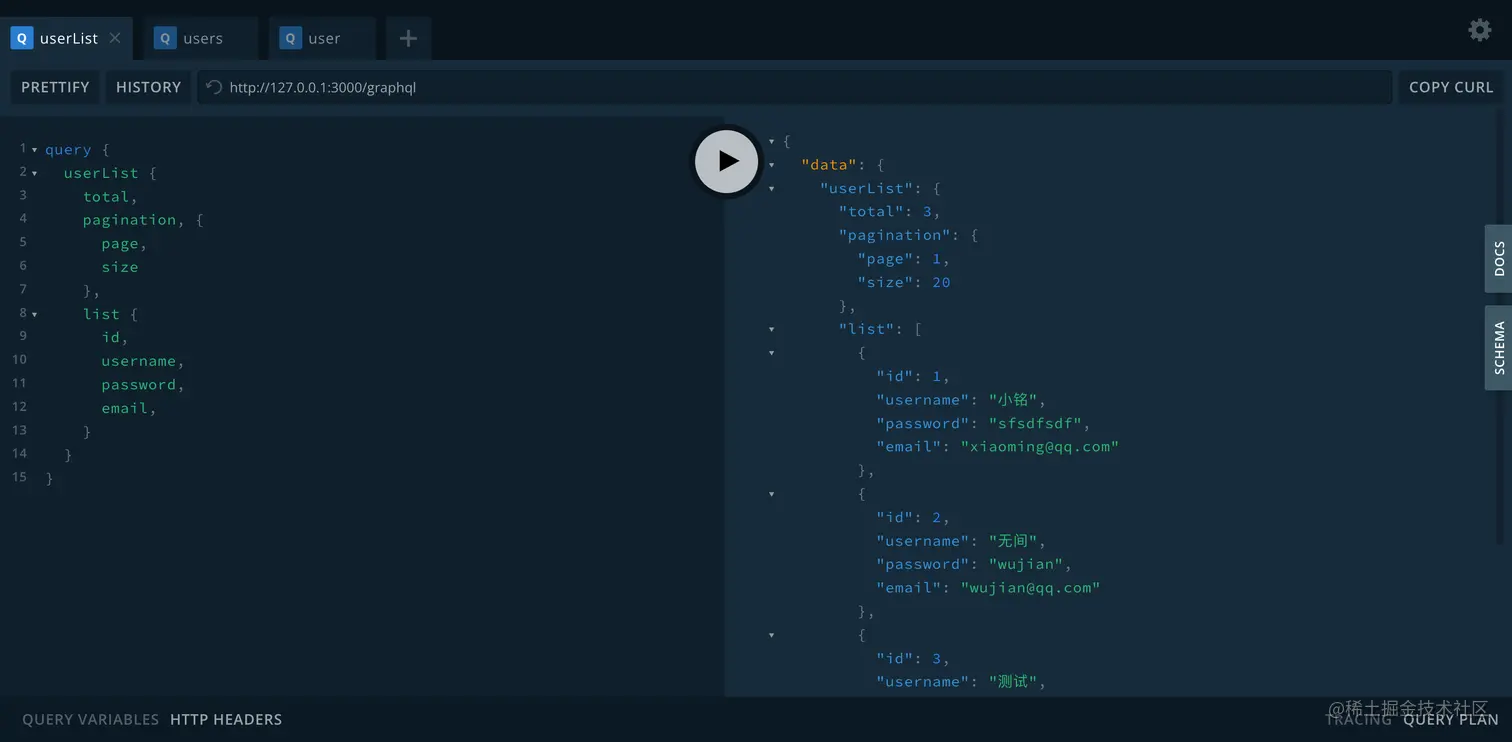

2、GraphQL数据类型定义与分页实现

在user.resolver.ts中添加分页query userList

// src/modules/user/user.resolver.ts
import { UserEntity } from './entities/user.entity'
import { UserService } from './user.service'
import { Resolver, Query, Args } from '@nestjs/graphql'
// 定义分页数据结构
import { UserListPaginated } from './dto/userList.paginated.gql'

@Resolver(() => UserEntity)
export class UserResolver {
  constructor(private readonly userService: UserService) {}

  @Query(() => UserListPaginated, { name: 'userList', nullable: true })
  userList(
    @Args('page', {
      type: () => Int,
      defaultValue: 1,
    })
    page?: number,
    @Args('size', {
      type: () => Int,
      defaultValue: 20,
      nullable: true,
    })
    size?: number
  ): Promise<UserListPaginated> {
    return this.userService.findListAndPage({
      pagination: {
        page,
        size,
      },
    })
  }
}

[重要] 定义分页数据结构

// src/modules/user/dto/userList.paginated.gql.ts
import { ObjectType } from '@nestjs/graphql'
import { UserEntity } from '../entities/user.entity'
import { Paginated } from '../../../globals/paginated.gql'

@ObjectType()
export class UserListPaginated extends Paginated<UserEntity>(UserEntity) {}

[重要]分页方法提取到paginated.gql.ts中，方便复用。

// src/globals/paginated.gql.ts
import { Field, ObjectType, Int } from '@nestjs/graphql'
import { Type } from '@nestjs/common'

interface IPagination {
  page?: number
  size?: number
}

export interface IPaginatedType<T> {
  list: T[]
  total: number
  pagination: IPagination
}

export function Paginated<T>(classRef: Type<T>): Type<IPaginatedType<T>> {
  @ObjectType(`${classRef.name}Pagination`)
  abstract class Pagination {
    @Field(() => Number)
    size: number

    @Field(() => Number)
    page: number
  }

  @ObjectType({ isAbstract: true })
  abstract class PaginatedType implements IPaginatedType<T> {
    @Field(() => Pagination, { nullable: true })
    pagination: Pagination

    @Field(() => [classRef], { nullable: true })
    list: T[]

    @Field(() => Int)
    total: number
  }
  return PaginatedType as Type<IPaginatedType<T>>
}

测试：http://127.0.0.1:3000/graphql

默认参数测试

添加上参数（page：1，size：2）测试

五、总结

个人还是比较Nestjs与GraphQL的，nestjs入门比较简单的，自己用nestjs写一个博客，就能入门，但是要精通它（特别是它的周边配套，服务端的知识，太多了）还是很难的。最近自己在写一下小项目，一直在学习，希望能与jym交流，有问题留言。

实例代码：https://github.com/wujian-xyz/nest-demo ，希望能帮到大家。

大纲
